The Google Storage component enables integration with the Google Cloud Storage service, facilitating the storage and retrieval of objects in Google Cloud buckets. As a connector, it can be configured to perform file uploads, list objects, and remove items from buckets. The integration supports sending different types of files, as well as allowing header customization, overwrite control, and error handling.

URI syntax: google-storage:bucketName

Main fields

Path parameters

Name	Description	Default	Type
`bucketName` (common)	(required) Bucket name or ARN.	—	String

Query parameters

Name	Description	Default	Type
`serviceAccountKey` (common)	The service account key that can be used as a credential for the Storage client. It can be loaded from classpath, file or URL.	—	String
`objectName` (producer)	Object name within the bucket.	—	String
`operation` (producer)	Defines the operation for the producer. Possible values: `copyObject`, `listObjects`, `deleteObject`, `deleteBucket`, `listBuckets`, `getObject`, `createDownloadLink`.	—	GoogleCloudStorageOperations

Example

IMPORTANT
Before executing the integration flow, import the Google Cloud service account key to a config map. This key will be used as a resource in the integration:
The "key.json" file contains the service account credentials in JSON format. In Integrations, this key will be configured as a Resource file.
Read more about Resources files.

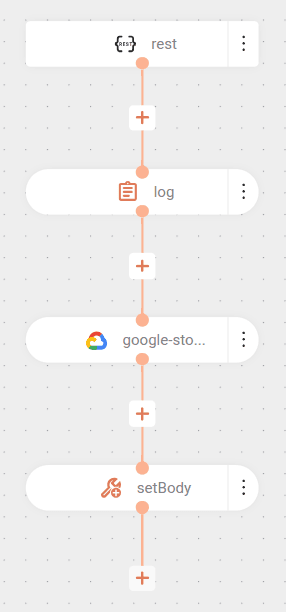

The flow below publishes a file to the sensedia-test-bucket bucket with the content sent in the integration payload. See the step-by-step:

The flow starts with a POST request on the /google-storage endpoint.

Then it logs the received content, showing the payload: got body ${body}.

Next, it uploads to Google Cloud Storage:

Bucket: sensedia-test-bucket
File name: myfile.txt
Authentication: key.json (Google Cloud service account key)
Body content is saved as a file in the bucket.

Finally, it sets the JSON response. The body is changed to {"success": true}.

NOTE
After upload, setBody is used to set the request response, as the body returned by the google-storage component is of type com.google.cloud.storage.Blob, which is not compatible with JSON serialization (not jackson-friendly).
Alternatively, you can extract specific properties from the Java object using simple language:. In the example, only the file name is captured and returned in the response:

cURL

Result

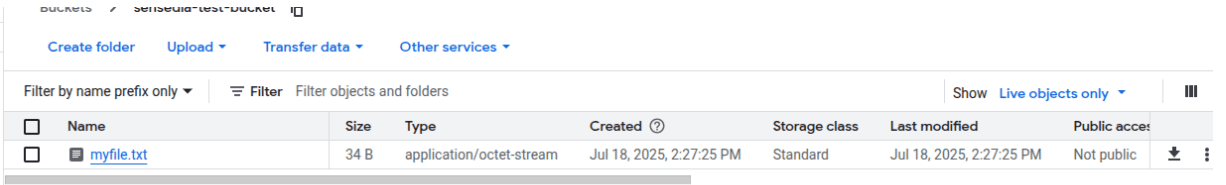

As a result of the integration, the file myfile.txt is available:
