Quick Guide

This quick guide helps you understand the operation of the Sensedia Events Hub. It provides an overview of how to:

• Configure routes to send and receive events.

• Apply security policies and automatic retry mechanisms for distributing events to subscribers.

TIP

The links included on this page lead to more detailed sections of our documentation.

Glossary

Throughout the documentation, you will encounter some terms specific to the messaging context. To facilitate understanding, we explain:

• Publishers: applications that send events. They are responsible for creating events and sending them to the Events Hub.

• Subscribers: applications or client partners that receive events and can take actions based on them.

• Business moments: opportunities for business growth that can generate revenue when leveraged using the Events Hub.

General operation

The Events Hub allows you to manage an event distribution architecture through a low-code interface, requiring no advanced programming knowledge. You can register and manage publishers and subscribers independently.

To ensure the Events Hub knows which subscribers should receive specific events, publication and subscription routes are created, forming a channel for receiving and distributing events. These routes are defined using topics, handlers, and contexts, each with a specific path added to the publication URL. When publishers send requests to the Events Hub, we ensure they are distributed only to the subscribers registered to receive the event.

In addition to managing event publication and subscription, the Events Hub ensures delivery to subscribers through:

• Monitoring the delivery status.

• Automatic retry attempts.

• Manual resending via the interface in case of failure.

To ensure security throughout the event management process, you can add interceptors to the receiving flow. This allows you to control publisher access, which can be validated by an external server.

For subscribers, we include a digital signature with all distributed events to validate the origin of the requests. Additionally, you can configure a static or dynamic security token for secure information traffic.

Topics, handlers, and contexts

Topics, handlers, and contexts form the channel for event publication and subscription. They organize the routes for receiving and distributing events, ensuring messages reach the correct subscribers.

Topics

A topic is the last marker in the publication URL, through which the Events Hub identifies the subscribers for each event. Publishers send requests using the topic's publication URL, and the Events Hub forwards the events to all active subscribers in the topic.

Handlers

Handlers are groups of topics that logically organize them. They also apply security and delivery policies shared across all topics within the handler.

Contexts

Contexts allow topics to be reused in different scenarios. Authorization servers are defined per context, meaning two different contexts for a topic can use distinct authorization endpoints.

TIP

The event publication URL consists of two parts: the base (unique to each client) and the placeholders context, handler, and topic, organized as follows: url-base/context/handler/topic.

Example: Same topic in different scenarios

You have a handler named "Alerts" at the path /alerts, grouping API monitoring alert topics. One of these topics is /latency, which distributes latency alert events.

In this scenario, you can:

1. Not register any context. In this case, the Events Hub sets the "Default" context, and no marker is added to the publication URL. Requests to the latency topic will be sent to url-base/alerts/latency, and all active subscribers will receive the events.

2. Register a context to define environments. For example, in a testing scenario where you don't want subscribers to receive alerts, you can register the testing context and enable it for the latency topic.

To register subscribers in the context, link them to the latency topic and enable them only for the testing context. Events sent to <url-base>/testing/alerts/latency will be distributed only to subscribers in this context.

The testing context also allows using a mock authorization so your team doesn't need to validate the credentials of the default context's authorization endpoint.

Configuring topics, handlers, and contexts

TIP

To register handlers with contexts, we recommend registering the context beforehand on the Contexts screen.

Handlers are created and managed on the Handlers screen. On the handler registration and editing screen, you can:

• Create and edit topics and policies.
• Assign contexts to topics by clicking the arrow icon on the registration screen. Contexts must be pre-registered on the Contexts screen. Publisher authorization endpoints are defined per context on the Authorizations screen.

Context, Handler, and Topic Registration

Publishers and subscribers

The Events Hub allows intuitive and independent registration of both sides of event integration: producers and consumers.

Publishers are the source of events. They are registered on the Publishers screen. You can create them or import an app from the Sensedia API Platform.

During registration, you connect the publisher to the topics it will send events to. Additionally, you choose which contexts will be shared with it.

Publisher Registration and Management Screen

Subscribers are those who receive events. They are registered on the Subscribers screen. When registering a subscriber, you subscribe them to the topics they will receive events from and choose which contexts will be shared with them.

IMPORTANT

Subscribers must configure a URL for each topic they will receive events from. This allows a single subscriber to receive events at different URLs.

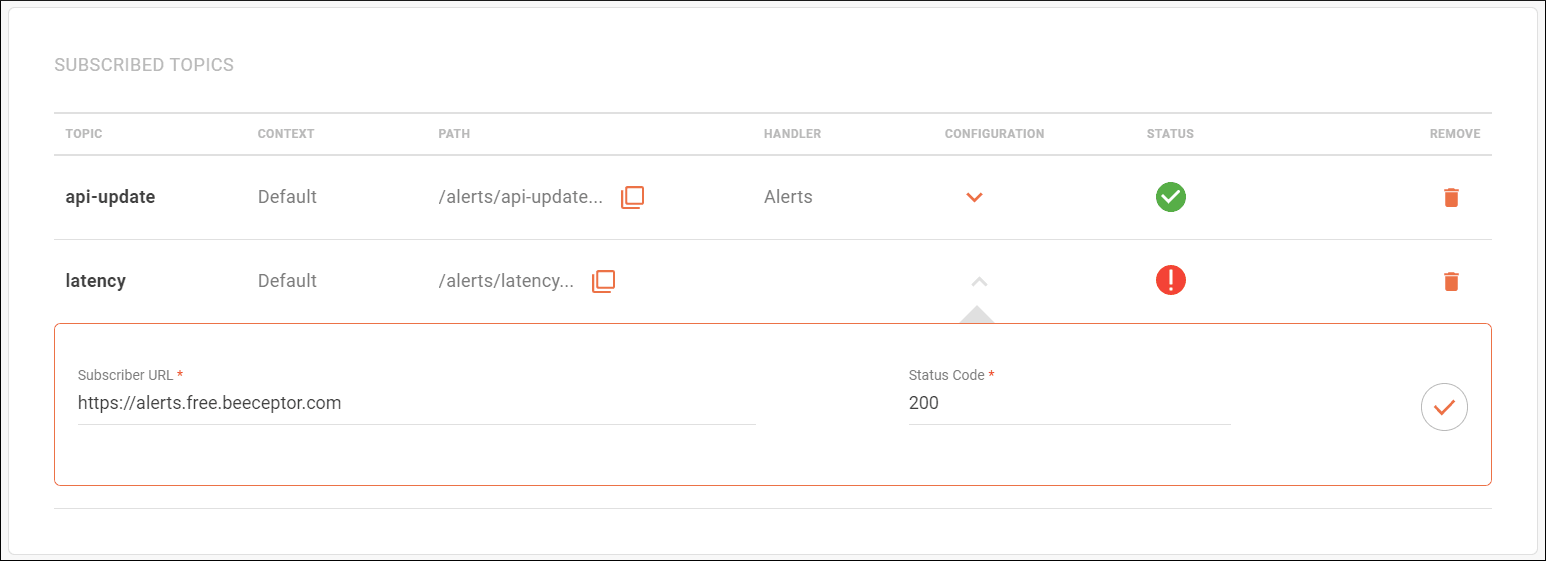

Subscriber Registration: Defining Subscriber URL

Security policies for publishers

On the Policies screen, you can define security measures for publishers and event delivery to subscribers. This includes:

• The number of automatic delivery retry attempts.

• Request timeout.

• HTTP status codes that trigger retries.

Publisher security is ensured by interceptors that validate their identity, such as OAuth, JWT, Client ID, and Access Token. Additionally, you can filter publisher access by IP.

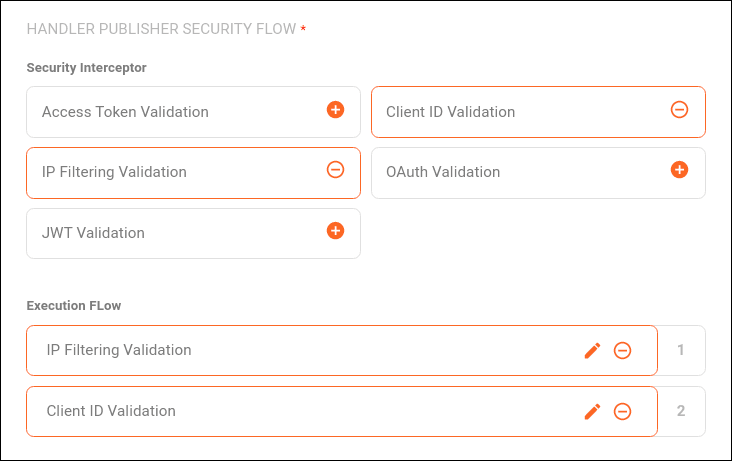

Policy Configuration: Security Section

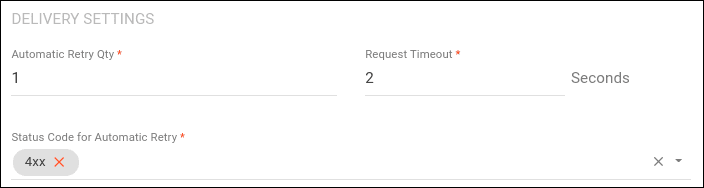

Policy Configuration: Retry Settings Section

Policies are applied to handlers during their creation or editing on the Handlers screen. Therefore, all topics within a handler use the same policy.

Publisher authorization is defined at the context level by an external authorization server, configured on the Authorizations screen.

Security in subscriber connections

The Events Hub implements security layers that allow subscribers to verify the origin of received messages. This is done through digital signatures included in all requests. The signature is a JWT token generated from a shared key between subscribers and the Events Hub during subscriber registration.

To enhance security, you can also configure a static or dynamic token to be included in requests.

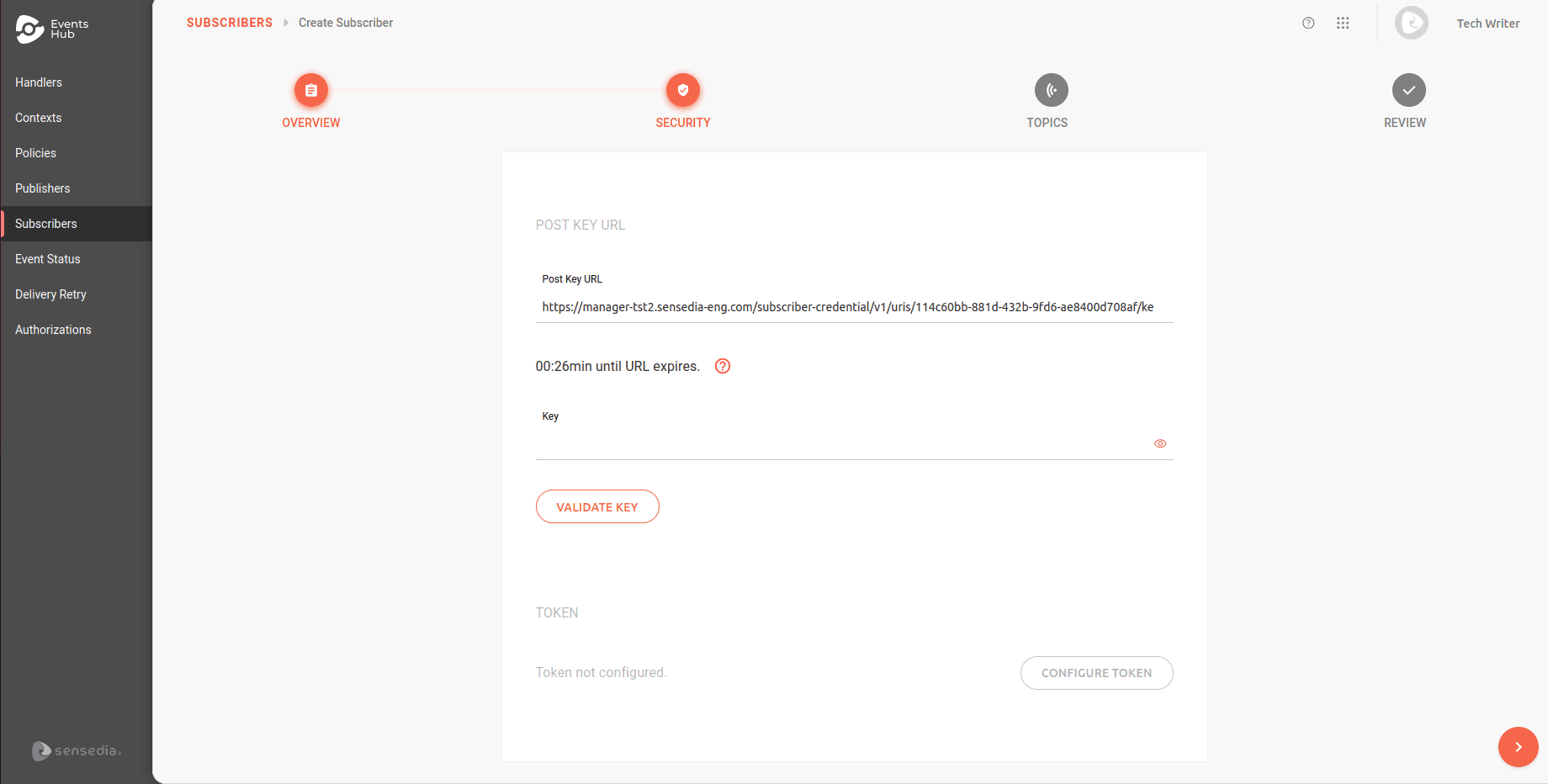

Subscriber Registration: Mutual Key and Token Configuration Step

Event details and manual resending

You can track detailed information about received events on the Event Status screen. For each event, the attempts and distribution history to subscribers are displayed.

List of Events Received from Publishers

NOTE

Automatic delivery retries use an exponential backoff algorithm to increase success chances. However, if all delivery attempts to a subscriber fail, you can attempt a manual delivery on the Delivery Retry screen.
